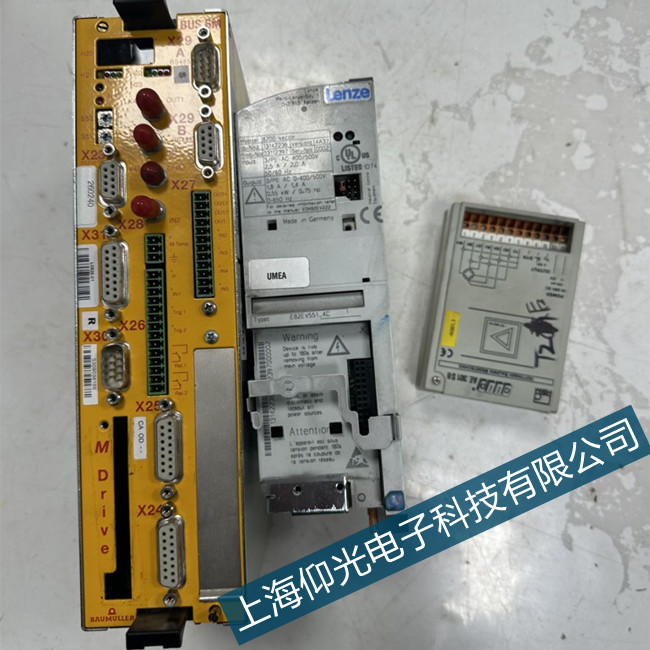

包米勒高性能伺服驅動器維修：2013：Timeout quick discharge超時快速放電。The active mains rectifier unit calculates the discharging time from the maximum discharging resistor (see Instruction Manual) and the maximum DC link capacity according to the relation:電整流器單元根據以下關系式計算最大放電電阻器的放電時間（請參閱說明書）和最大直流鏈路容量：
If the discharging is triggered, the DC link is discharged always for at least 10 s via the discharging resistor. 如果觸發放電，則直流鏈路總是通過放電電阻器放電至少10 s。
南通鮑米勒伺服驅動器維修服務：
If the DC link voltage is greater than 20 V after 10 s discharging time, then it is checked whether the calculated discharging time is greater than the so far elapsed discharging time of 10 s. 如果DC鏈路電壓在10s放電時間后大于20V，則檢查計算出的放電時間是否大于迄今為止經過的10s的放電時間。
If this is not the case, the error is triggered at once.
如果不是這種情況，則會立即觸發錯誤。
If the calculated discharging time is greater than 10 s and if the DC link voltage is greater than 20 V after the discharging time, then the error is triggered also in this case.如果計算的放電時間大于10s，并且如果DC鏈路電壓在放電時間之后大于20V，則在這種情況下也觸發誤差。
Possible causes: The chopper resistor is not connected or was selected too great. Possibly the DC link capacity is greater than specified (see Operating Instructions BM5000 (5.09021)).可能的原因：斬波電阻器未連接或選擇得太大。直流鏈路容量可能大于規定值（請參閱操作說明BM5000（5.09021））。
